Description

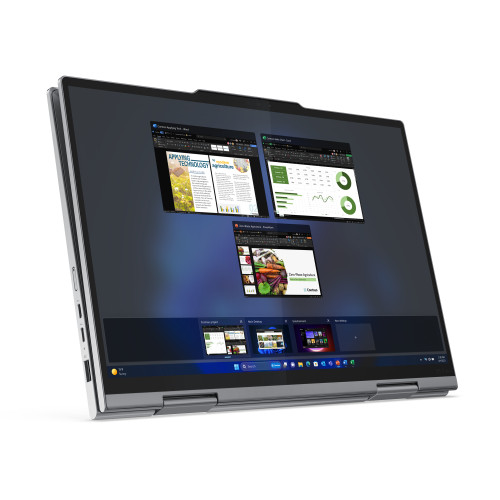

Lenovo ThinkPad X1 2-in-1 Gen 9. Product type: Hybrid (2-in-1), Form factor: Convertible (Folder). Processor family: Intel Core Ultra 7, Processor model: 155U. Display diagonal: 35.6 cm (14"), HD type: WUXGA, Display resolution: 1920 x 1200 pixels, Touchscreen. Internal memory: 16 GB, Internal memory type: LPDDR5x-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel® Graphics. Operating system installed: Windows 11 Pro. Product colour: Grey
Key Features
- Hybrid (2-in-1) Convertible (Folder) Grey
- Intel Core Ultra 7 155U Processor cores: 12
- Touchscreen 35.6 cm (14") WUXGA 1920 x 1200 pixels IPS LED backlight 16:10
- 16 GB LPDDR5x-SDRAM 6400 MHz
- 512 GB SSD
- Intel® Graphics
- Wi-Fi 6E (802.11ax) Bluetooth 5.3
- Lithium Polymer (LiPo) 57 Wh 65 W
- Windows 11 Pro 64-bit
Specifications
| Dimensions Weight | |
|---|---|
| Width | 312.8 mm |
| Height | 15.49 mm |
| Depth | 217.65 mm |
| Weight | 1350 g |
| Antenna | |
| Antenna type | 2x2 |
| Audio | |
| Audio chip | Realtek ALC3306 |
| Audio system | Dolby Atmos |
| Built-in microphone | Yes |
| Number of built-in speakers | 2 |
| Speaker power | 2 |
| Battery | |
| Battery capacity | 57 |
| Battery technology | Lithium Polymer (LiPo) |
| Fast charging | Yes |
| Product colour | Grey |
| Camera | |
| Front camera | Yes |
| Front camera HD type | Full HD |
| Front camera resolution | 1920 x 1080 |
| HD type | WUXGA |
| Operating system installed | Windows 11 Pro |
| Privacy camera | Yes |
| Privacy type | Privacy shutter |
| Windows Hello | Yes |
| Certificates | |
| Compliance certificates | RoHS |
| Computer system | |
| Internal memory | 16 |
| Maximum internal memory | 16 |
| Processor cache | 12 |
| Processor cores | 12 |
| Processor family | Intel Core Ultra 7 |
| Processor generation | Intel® Core™ Ultra (Series 1) |
| Processor manufacturer | Intel |
| Processor model | 155U |
| Data transmission | |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Design | |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Display diagonal | 14 |
| Display resolution | 1920 x 1200 |
| Ethernet LAN | No |
| Fingerprint reader | Yes |
| Form factor | Convertible (Folder) |
| Housing material | Aluminium |
| Keyboard language | UK English |
| LED backlight | Yes |
| Numeric keypad | No |
| Operating relative humidity (H-H) | 8 - 95 |
| Operating temperature (T-T) | 5 - 35 |
| Product type | Hybrid (2-in-1) |
| Storage relative humidity (H-H) | 5 - 95 |
| Storage temperature (T-T) | 5 - 43 |
| Stylus pen | Yes |
| Touchscreen | Yes |
| Display | |
| Anti-glare screen | Yes |
| Display brightness | 400 |
| Maximum refresh rate | 60 |
| Native aspect ratio | 16:10 |
| On-board graphics card model | Intel® Graphics |
| Panel type | IPS |
| Docking station | |
| Card reader integrated | No |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB Power Delivery (USB PD) | Yes |
| Features | |
| AC adapter input voltage | 100 - 240 |
| AC adapter power | 65 |
| Depth | 217.65 |
| Discrete graphics card model | Not available |
| Height | 15.49 |
| Internal memory type | LPDDR5x-SDRAM |
| Keyboard backlit | Yes |
| Memory form factor | On-board |
| Mobile network connection | No |
| Motherboard chipset | Intel SoC |
| Near Field Communication (NFC) | Yes |
| Number of SSDs installed | 1 |
| NVMe | Yes |
| On-board graphics card | Yes |
| On-board graphics card family | Intel® Graphics |
| Processor boost frequency | 4.8 |
| Processor cache type | Smart Cache |
| Processor threads | 14 |
| Smart card reader | No |
| SSD capacity | 512 |
| SSD form factor | M.2 |
| SSD interface | PCI Express 4.0 |
| Storage media | SSD |
| Total storage capacity | 512 |
| Trusted Platform Module (TPM) | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| WWAN | Upgradable |
| Graphics | |
| Discrete graphics card | No |
| On-board GPU manufacturer | Intel |
| Network | |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Neural processor unit (NPU) | |
| AI datatype support on NPU | FP16, FP32, Int8 |
| AI software frameworks supported by NPU | DirectML, ONNX RT, OpenVINO, Windows ML |
| Maximum frequency NPU | 1.4 |
| Neural processor unit (NPU) | Intel AI Boost |
| Performance | |
| Efficient cores | 8 |
| Performance cores | 2 |
| Processor | |
| Efficient-core base frequency | 1.2 |
| Efficient-core Max Turbo Frequency | 3.8 |
| Low Power Efficient-core Base Frequency | 700 |
| Low Power Efficient-core Max Turbo Frequency | 2.1 |
| Low Power Efficient-cores | 2 |
| Performance-core base frequency | 1.7 |
| Performance-core Max Turbo Frequency | 4.8 |
| Storage | |
| Total SSDs capacity | 512 |
Extra Information
Brand:
Lenovo
Number of built-in speakers:
2
Audio system:
Dolby Atmos
Speaker power:
2
Fast charging:
Yes
Front camera:
Yes
Infrared (IR) camera:
Yes
Front camera resolution:
1920 x 1080
Form factor:
Convertible (Folder)
Cable lock slot:
Yes
Cable lock slot type:
Kensington
Touchscreen:
Yes
Display diagonal:
14
Display resolution:
1920 x 1200
Contrast ratio (typical):
1000:1
Maximum refresh rate:
60
Anti-glare screen:
Yes
Display brightness:
400
RGB colour space:
sRGB
Colour gamut:
100%
LED backlight:
Yes
Product colour:
Grey
Housing material:
Aluminium
Certification:
MIL-STD-810H military test passed
Product type:
Hybrid (2-in-1)
Memory form factor:
On-board
SSD capacity:
512
NVMe:
Yes
On-board graphics card:
Yes
Discrete graphics card:
No
Discrete graphics card model:
Not available
On-board GPU manufacturer:
Intel
Numeric keypad:
No
Pointing device:
ThinkPad UltraNav
Fingerprint reader:
Yes
Keyboard backlit:
Yes
Spill-resistant keyboard:
Yes
Memory channels:
Dual-channel
Built-in microphone:
Yes
Number of microphones:
2.0
Ethernet LAN:
No
Mobile network connection:
No
WLAN controller manufacturer:
Intel
WWAN:
Upgradable
Near Field Communication (NFC):
Yes
Sparsity support:
Yes
Windows Studio effects support:
Yes
Operating relative humidity (H-H):
8 - 95
Storage relative humidity (H-H):
5 - 95
Maximum shipping altitude:
3048 m
Maximum internal memory:
16
Stylus pen:
Yes
Bundled software:
Intel Connectivity Performance Suite
Internal memory:
16
Privacy camera:
Yes
Internal memory type:
LPDDR5x-SDRAM
Memory clock speed:
6400 MHz
Card reader integrated:
No
Colour name:
Grey
Motherboard chipset:
Intel SoC
Trusted Platform Module (TPM):
Yes
HDMI ports quantity:
1
Combo headphone/mic port:
Yes
Bluetooth:
Yes
Thunderbolt 4 ports quantity:
2.0
USB Type-C DisplayPort Alternate Mode:
Yes
Intel® Thunderbolt 4:
Yes
USB Sleep-and-Charge:
Yes
USB Sleep-and-Charge ports:
1.0
Battery capacity:
57
USB Power Delivery (USB PD):
Yes
AC adapter power:
65
AC adapter frequency:
50/60 Hz
AC adapter input voltage:
100 - 240
Processor cores:
12
Processor manufacturer:
Intel
Processor threads:
14
Processor cache:
12
Processor base power:
15 W
Performance cores:
2
Efficient cores:
8
Maximum turbo power:
57 W
Low Power Efficient-cores:
2
Low Power Efficient-core Base Frequency:
700
Trusted Platform Module (TPM) version:
2.0
Password protection:
Yes
Password protection type:
BIOS, Power on, SSD, Supervisor
Smart card reader:
No
Windows Hello:
Yes
Operating system architecture:
64-bit
Operating system language:
English
Total storage capacity:
512
Optical drive type:
No
Total SSDs capacity:
512
Number of SSDs installed:
1
Sustainability certificates:
ENERGY STAR, EPEAT Gold, ErP, TCO
Weight:
1350 g
Top Wi-Fi standard:
Wi-Fi 6E (802.11ax)
Sustainability compliance:
Yes
Antenna type:
2x2
Download | Product Brochure:
https://objects.icecat.biz/objects/mmo_120368591_1718089624_8689_49.pdf
ERP Category:
LENOVO
Icecat Category:
Laptops
Width:
312.8 mm
Height:
15.49 mm
Depth:
217.65 mm
Audio chip:
Realtek ALC3306
Battery technology:
Lithium Polymer (LiPo)
Front camera HD type:
Full HD
HD type:
WUXGA
Operating system installed:
Windows 11 Pro
Privacy type:
Privacy shutter
Compliance certificates:
RoHS
Processor family:
Intel Core Ultra 7
Processor generation:
Intel® Core™ Ultra (Series 1)
Processor model:
155U
Bluetooth version:
5.3
Keyboard language:
UK English
Operating temperature (T-T):
5 - 35
Storage temperature (T-T):
5 - 43
Native aspect ratio:
16:10
On-board graphics card model:
Intel® Graphics
Panel type:
IPS
HDMI version:
2.1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:
2
Depth:
217.65
Height:
15.49
On-board graphics card family:
Intel® Graphics
Processor boost frequency:
4.8
Processor cache type:
Smart Cache
SSD form factor:
M.2
SSD interface:
PCI Express 4.0
Storage media:
SSD
Wi-Fi standards:
Wi-Fi 6E (802.11ax)
WLAN controller model:
Intel Wi-Fi 6E AX211
AI datatype support on NPU:
FP16, FP32, Int8
AI software frameworks supported by NPU:
DirectML, ONNX RT, OpenVINO, Windows ML
Maximum frequency NPU:
1.4
Neural processor unit (NPU):
Intel AI Boost
Efficient-core base frequency:
1.2
Efficient-core Max Turbo Frequency:
3.8
Low Power Efficient-core Max Turbo Frequency:
2.1
Performance-core base frequency:
1.7
Performance-core Max Turbo Frequency:
4.8
