Description

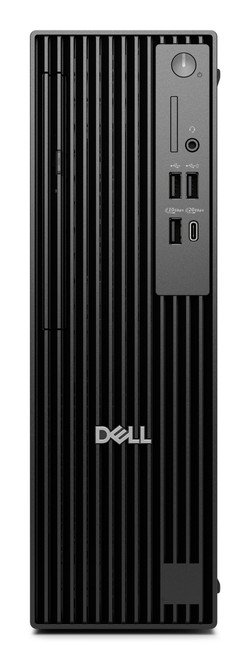

DELL Pro QBS1250 Plus. Processor family: Intel Core Ultra 7, Processor model: 265. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel® Graphics. Wi-Fi. Operating system installed: Windows 11 Pro, Operating system architecture: 64-bit. Power supply: 260 W. Chassis type: Slim PC. Product type: PC. Product colour: Black
Key Features
- Business PC Black 260 W
- Intel Core Ultra 7 265 Processor cores: 20
- 16 GB DDR5-SDRAM 1 x 16 GB
- 512 GB SSD
- Intel® Graphics
- Ethernet LAN 10,100,1000 Mbit/s Wi-Fi 6E (802.11ax) Bluetooth
- Windows 11 Pro 64-bit
Specifications
| Dimensions Weight | |
|---|---|
| Width | 95 mm |
| Height | 303.5 mm |
| Depth | 293 mm |
| Build Materials Chassis Design | |
| Chassis Type | Slimpc |
| Antenna | |
| Antenna design | Internal |
| Antenna type | 2x2 |
| Audio | |
| Audio chip | Realtek ALC3204 |
| Audio system | High Definition Audio |
| Battery | |
| Product colour | Black |
| Camera | |
| Operating system installed | Windows 11 Pro |
| Carbon footprint | |
| Total carbon footprint (kg of CO2e) | 177 |
| Certificates | |
| Doesn't contain | PVC/BFR |
| Computer case | |
| Power supply | 260 |
| USB 2.0 ports quantity | 4 |
| Computer system | |
| Internal memory | 16 |
| Maximum internal memory | 128 |
| Processor cache | 30 |
| Processor cores | 20 |
| Processor family | Intel Core Ultra 7 |
| Processor generation | Intel Core Ultra (Series 2) |
| Processor manufacturer | Intel |
| Processor model | 265 |
| Data transmission | |
| Bluetooth | Yes |
| Design | |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Market positioning | Business |
| Operating relative humidity (H-H) | 10 - 90 |
| Operating temperature (T-T) | 10 - 35 |
| Product type | PC |
| Storage relative humidity (H-H) | 0 - 95 |
| Storage temperature (T-T) | -40 - 65 |
| Display | |
| On-board graphics card model | Intel® Graphics |
| Docking station | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Ethernet LAN features | |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN data rates | 10, 100, 1000 Mbit/s |
| Expansion slots | |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x4 (Gen 3.x) slots | 1 |
| Features | |
| Cables included | AC |
| Carbon emissions, end-of-life (kg of CO2e) | 3.54 |
| Carbon emissions, energy usage (kg of CO2e) | 67.61 |
| Carbon emissions, logistics (kg of CO2e) | 10.09 |
| Carbon emissions, manufacturing (kg of CO2e) | 95.93 |
| Discrete graphics card model | Not available |
| DisplayPort version | 1.4a |
| DisplayPorts quantity | 3 |
| Internal memory type | DDR5-SDRAM |
| Memory data transfer rate | 5600 |
| Memory slots | 4x DIMM |
| Motherboard chipset | Intel Q870 |
| Non-ECC | Yes |
| Number of SSDs installed | 1 |
| NVMe | Yes |
| On-board graphics card | Yes |
| On-board graphics card family | Intel® Graphics |
| Processor boost frequency | 5.3 |
| Processor cache type | Smart Cache |
| Processor threads | 20 |
| SSD capacity | 512 |
| SSD form factor | M.2 |
| SSD interface | PCI Express 4.0 |
| Storage media | SSD |
| Total storage capacity | 512 |
| Trusted Platform Module (TPM) | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax) |
| Graphics | |
| Discrete graphics card | No |
| On-board GPU manufacturer | Intel |
| Network | |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Neural processor unit (NPU) | |
| AI software frameworks supported by NPU | DirectML, ONNX RT, OpenVINO, WebNN, Windows ML |
| GPU performance up to | 8 |
| Neural processor unit (NPU) | Intel AI Boost |
| NPU performance up to | 13 |
| Total processor performance up to | 33 |
| Performance | |
| Efficient cores | 12 |
| Performance cores | 8 |
| Ports & interfaces | |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Processor | |
| Efficient-core base frequency | 1.8 |
| Efficient-core Max Turbo Frequency | 4.6 |
| Performance-core base frequency | 2.4 |
| Performance-core Max Turbo Frequency | 5.2 |
| Storage | |
| Total SSDs capacity | 512 |
Extra Information
Brand:
DELL
Antenna design:
Internal
Audio system:
High Definition Audio
Carbon emissions, manufacturing (kg of CO2e):
95.93
Carbon emissions, logistics (kg of CO2e):
10.09
Carbon emissions, energy usage (kg of CO2e):
67.61
Carbon emissions, end-of-life (kg of CO2e):
3.54
PAIA version:
GaBi version 1, 2024
Cable lock slot:
Yes
Cable lock slot type:
Kensington
Market positioning:
Business
Chassis Type:
Slimpc
Placement supported:
Horizontal/Vertical
Display included:
No
PCI Express x4 (Gen 3.x) slots:
1
PCI Express x1 (Gen 3.x) slots:
1
PCI Express x16 (Gen 4.x) slots:
1.0
Product colour:
Black
Product type:
PC
SSD capacity:
512
SSD form factor:
M.2
NVMe:
Yes
On-board graphics card:
Yes
Discrete graphics card:
No
On-board graphics card model:
Intel® Graphics
Discrete graphics card model:
Not available
On-board GPU manufacturer:
Intel
On-board graphics card family:
Intel® Graphics
Memory layout (slots x size):
1 x 16 GB
Memory slots:
4x DIMM
Non-ECC:
Yes
Memory data transfer rate:
5600
Ethernet LAN data rates:
10, 100, 1000 Mbit/s
Ethernet LAN:
Yes
Wi-Fi:
Yes
WLAN controller model:
Intel Wi-Fi 6E AX211
WLAN controller manufacturer:
Intel
LAN controller:
Intel® I219-LM
Neural processor unit (NPU):
Intel AI Boost
Sparsity support:
Yes
Windows Studio effects support:
Yes
AI software frameworks supported by NPU:
DirectML, ONNX RT, OpenVINO, WebNN, Windows ML
NPU performance up to:
13
Total processor performance up to:
33
GPU performance up to:
8
Operating temperature (T-T):
10 - 35
Storage temperature (T-T):
-40 - 65
Operating relative humidity (H-H):
10 - 90
Storage relative humidity (H-H):
0 - 95
Operating altitude:
-15.2 - 3048 m
Non-operating altitude:
-15.2 - 10668 m
Operating shock:
110 G
Non-operating shock:
160 G
Operating vibration:
0.66 G
Non-operating vibration:
1.3 G
Maximum internal memory:
128
Cables included:
AC
Input device model:
Dell Pro Keyboard and Mouse - KM5221W - UK (QWERTY) - Black
Processor model:
265
Internal memory:
16
Cabling technology:
10/100/1000Base-T(X)
Internal memory type:
DDR5-SDRAM
Audio chip:
Realtek ALC3204
Motherboard chipset:
Intel Q870
Trusted Platform Module (TPM):
Yes
Ethernet LAN (RJ-45) ports:
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:
3
USB 2.0 ports quantity:
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:
1
DisplayPorts quantity:
3
Combo headphone/mic port:
Yes
Bluetooth:
Yes
DisplayPort version:
1.4a
USB 3.2 Gen 2x2 Type-C ports quantity:
1
Number of SATA III connectors:
2.0
Number of rear USB ports:
6.0
Number of front USB ports:
4.0
Power supply:
260
Power supply input voltage:
90 - 264 V
Power supply input frequency:
47/63 Hz
Processor family:
Intel Core Ultra 7
Processor cores:
20
Processor manufacturer:
Intel
Processor threads:
20
Processor boost frequency:
5.3
Processor cache:
30
Processor cache type:
Smart Cache
Processor generation:
Intel Core Ultra (Series 2)
Number of processors installed:
1.0
Processor base power:
65 W
Performance-core Max Turbo Frequency:
5.2
Efficient-core Max Turbo Frequency:
4.6
Performance cores:
8
Efficient cores:
12
Maximum turbo power:
182 W
Performance-core base frequency:
2.4
Efficient-core base frequency:
1.8
Trusted Platform Module (TPM) version:
2.0
Operating system installed:
Windows 11 Pro
Operating system architecture:
64-bit
Trial software:
Activate Your Microsoft 365 For A 30 Day Trial
Total storage capacity:
512
Optical drive type:
No
Storage media:
SSD
Total SSDs capacity:
512
Number of SSDs installed:
1
SSD interface:
PCI Express 4.0
SSD memory type:
TLC
Sustainability certificates:
ENERGY STAR, EPEAT Climate +, EPEAT Gold
Doesn't contain:
PVC/BFR
Total carbon footprint (kg of CO2e):
177
Width:
95 mm
Height:
303.5 mm
Depth:
293 mm
Top Wi-Fi standard:
Wi-Fi 6E (802.11ax)
Wi-Fi standards:
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)
Antenna type:
2x2
