Description

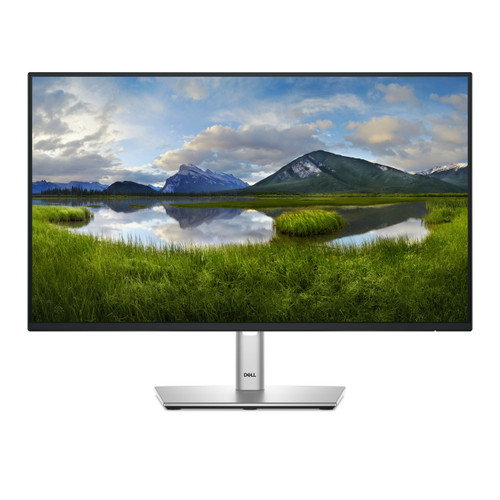

DELL Pro Plus P2425H. Display diagonal: 60.5 cm (23.8"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LCD, Response time: 8 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in USB hub, USB hub version: 3.2 Gen 1 (3.1 Gen 1). VESA mounting, Height adjustment. Product colour: Black
Key Features
- 60.5 cm (23.8") Black
- Height adjustment 15 cm
- HDMI HDMI version: 1.4 DisplayPorts quantity: 1 DisplayPort version: 1.2
- Screen shape: Flat
- Maximum refresh rate: 100 Hz Response time: 8 ms
- 1920 x 1080 pixels Full HD Panel type: IPS
- Energy efficiency class (SDR): C TÜV mark
Specifications
| Dimensions Weight | |
|---|---|
| Weight (without stand) | 3120 g |
| Width (with stand) | 538.64 mm |
| Display Screen | |
| Screen Diagonal (cm) | 604 mm |
| Screen HD Type | Fullhd |
| Screen Horizontal Scan Range (kHz) | 30 - 110 |
| Screen LED Backlight Type | LED |
| Screen Native Aspect Ratio | 16 9 |
| Screen Panel Type | IPS |
| Screen Pixel Density (PPI) | 92 |
| Screen Pixel Pitch | 0.2745 x 0.2745 |
| Screen Response Time (ms) | 8 ms |
| Screen Shape | Flatscreen |
| Screen Vertical Scan Range | 48 - 100 |
| Swiveling Support | Yes |
| Tilt Adjustment Support | Yes |
| VESA Mount Support | Yes |
| Audio | |
| Built-in speaker(s) | No |
| Battery | |
| Product colour | Black |
| Camera | |
| Built-in camera | No |
| HD type | Full HD+ |
| Mac operating systems supported | MacOS |
| On Screen Display (OSD) | No |
| Supported graphics resolutions | 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1600 x 900, 1920 x 1080 (HD 1080), 640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA) |
| Tilt angle range | -5 - 21 |
| Windows operating systems supported | Windows 10, Yes |
| Carbon footprint | |
| Total carbon footprint (kg of CO2e) | 155 |
| Certificates | |
| Doesn't contain | Arsenic, Mercury, PVC/BFR |
| Computer system | |
| VESA mounting | Yes |
| Design | |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Cable management | Yes |
| Display diagonal | 23.8 |
| Display resolution | 1920 x 1080 |
| Display technology | LCD |
| Height adjustment | Y |
| LED backlight | Yes |
| LED indicators | Yes |
| Operating relative humidity (H-H) | 10 - 80 |
| Operating temperature (T-T) | 0 - 40 |
| Panel mounting interface | 100 x 100 mm |
| Pivot angle | -90 - 90 |
| Storage relative humidity (H-H) | 5 - 90 |
| Storage temperature (T-T) | -20 - 60 |
| Swivel angle range | -45 - 45 |
| Swivelling | Yes |
| Tilt adjustment | Yes |
| Touchscreen | No |
| Display | |
| Anti-glare screen | Yes |
| Display brightness (typical) | 250 |
| Low Blue Light technology | Yes |
| Maximum refresh rate | 100 |
| Native aspect ratio | 16:9 |
| Panel type | IPS |
| Pixel density | 92.53 |
| Response time | 8 |
| sRGB coverage (typical) | 99 |
| Vertical scan range | 48 - 100 |
| Docking station | |
| Built-in USB hub | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 15 |
| Ergonomics | |
| Adjustable height (max) | 150 |
| Features | |
| AC input voltage | 100 - 240 |
| Cables included | AC, DisplayPort, USB Type-A to USB Type-B |
| Carbon emissions, end-of-life (kg of CO2e) | 4.03 |
| Carbon emissions, energy usage (kg of CO2e) | 57.66 |
| Carbon emissions, logistics (kg of CO2e) | 12.71 |
| Carbon emissions, manufacturing (kg of CO2e) | 80.6 |
| Depth (with stand) | 181.75 |
| DisplayPort version | 1.2 |
| DisplayPorts quantity | 1 |
| HDMI | Yes |
| Headphone out | No |
| Package weight | 6780 |
| Power supply type | Internal |
| USB cable length | 1.8 |
| VGA (D-Sub) ports quantity | 1 |
| Graphics | |
| AMD FreeSync | No |
| NVIDIA G-SYNC | No |
| Performance | |
| Flicker-free technology | Yes |
| Ports & interfaces | |
| Number of USB Type-B upstream ports quantity | 1 |
| Weight & dimensions | |
| Height (without stand) | 314.23 |
| Weight (without stand) | 3120 |
| Width (without stand) | 538.64 |
Extra Information
Brand:
DELL
Built-in speaker(s):
No
Dell Display Manager (DDM) compatibility:
Yes
Total carbon footprint (kg of CO2e):
155
Carbon emissions, manufacturing (kg of CO2e):
80.6
Carbon emissions, logistics (kg of CO2e):
12.71
Total carbon emissions, w/o use phase (kg of CO2e):
97.34
Carbon emissions, energy usage (kg of CO2e):
57.66
Carbon emissions, end-of-life (kg of CO2e):
4.03
PAIA version:
GaBi version 1, 2024
Product colour:
Black
VESA mounting:
Yes
Screen Shape:
Flatscreen
LED indicators:
Yes
Front bezel colour:
Black
Feet colour:
Grey
Display diagonal:
23.8
Display technology:
LCD
Display resolution:
1920 x 1080
HD type:
Full HD+
Touchscreen:
No
Panel type:
IPS
Anti-glare screen:
Yes
LED backlight:
Yes
Pixel density:
92.53
Maximum refresh rate:
100
Contrast ratio (typical):
1500:1
Native aspect ratio:
16:9
Display number of colours:
16.7 million colours
Backlight type:
LED
Display brightness (typical):
250
Supported graphics resolutions:
1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1600 x 900, 1920 x 1080 (HD 1080), 640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA)
Supported video modes:
480p, 576p, 720p, 1080p
Viewing angle, horizontal:
178°
Viewing angle, vertical:
178°
Response time (fast):
5 ms
Pixel pitch:
0.2745 x 0.2745 mm
Horizontal scan range:
30 - 110 kHz
Vertical scan range:
48 - 100
Viewable size, horizontal:
52.7 cm
Viewable size, vertical:
29.6 cm
Viewable size diagonal:
60.5 cm
Surface hardness:
3H
sRGB coverage (typical):
99
Dell ComfortView technology:
Yes
Cable lock slot:
Yes
Height adjustment:
Y
Panel mounting interface:
100 x 100 mm
Cable management:
Yes
Cable lock slot type:
Kensington
Adjustable height (max):
150
Pivot:
Yes
Pivot angle:
-90 - 90
Swivelling:
Yes
Swivel angle range:
-45 - 45
Tilt adjustment:
Yes
Tilt angle range:
-5 - 21
On Screen Display (OSD):
No
Plug and Play:
Yes
Built-in camera:
No
Operating temperature (T-T):
0 - 40
Storage temperature (T-T):
-20 - 60
Operating relative humidity (H-H):
10 - 80
Operating altitude:
0 - 5000 m
Non-operating altitude:
0 - 12192 m
Storage relative humidity (H-H):
5 - 90
Stand included:
Yes
Cables included:
AC, DisplayPort, USB Type-A to USB Type-B
Quick start guide:
Yes
DisplayPort cable length:
1.8 m
Package weight:
6780
USB cable length:
1.8
NVIDIA G-SYNC:
No
AMD FreeSync:
No
Flicker-free technology:
Yes
Low Blue Light technology:
Yes
HDMI ports quantity:
1
DisplayPorts quantity:
1
HDMI version:
1.4
Built-in USB hub:
Yes
HDMI:
Yes
Headphone out:
No
USB hub version:
3.2 Gen 1 (3.1 Gen 1)
Number of USB Type-B upstream ports quantity:
1
USB Type-A downstream ports quantity:
3.0
USB Type-C downstream ports quantity:
1.0
USB Power Delivery up to:
15
VGA (D-Sub) ports quantity:
1
DisplayPort version:
1.2
HDCP:
Yes
HDCP version:
1.4
AC (power) in:
Yes
Power consumption (typical):
11.7 W
Power consumption (standby):
0.3 W
Energy efficiency class (SDR):
C
Energy efficiency class (HDR):
Not available
Energy consumption (SDR) per 1000 hours:
12 kWh
Energy efficiency scale:
A to G
USB Power Delivery (USB PD):
Yes
AC input voltage:
100 - 240
AC input frequency:
50/60 Hz
Input current:
1.5 A
Power consumption (max):
65 W
Power consumption (off):
0.3 W
Power supply type:
Internal
European Product Registry for Energy Labelling (EPREL) code:
1865623.0
Response time:
8
Sustainability certificates:
TÜV mark
Doesn't contain:
Arsenic, Mercury, PVC/BFR
Windows operating systems supported:
Windows 10, Yes
Mac operating systems supported:
MacOS
Width (with stand):
538.64 mm
Depth (with stand):
181.75
Height (with stand):
364 mm
Weight (with stand):
4.61 kg
Width (without stand):
538.64
Depth (without stand):
50 mm
Height (without stand):
314.23
Weight (without stand):
3120 g
Bezel width (side):
5.8 mm
Bezel width (top):
5.8 mm
Bezel width (bottom):
1.2 cm
Sustainability compliance:
Yes
Screen Diagonal (cm):
604 mm
Screen HD Type:
Fullhd
Screen Horizontal Scan Range (kHz):
30 - 110
Screen LED Backlight Type:
LED
Screen Native Aspect Ratio:
16 9
Screen Panel Type:
IPS
Screen Pixel Density (PPI):
92
Screen Pixel Pitch:
0.2745 x 0.2745
Screen Response Time (ms):
8 ms
Screen Vertical Scan Range:
48 - 100
Swiveling Support:
Yes
Tilt Adjustment Support:
Yes
VESA Mount Support:
Yes
Weight (without stand):
3120
