Description

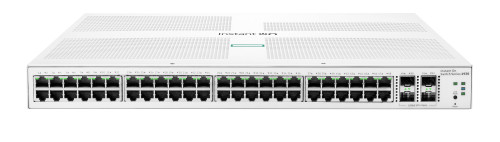

The HPE Networking Instant On Switch 1930 series is designed for small and growing businesses that require enhanced performance to support bandwidth-demanding applications. The 1930 switch series seamlessly integrates with existing Instant On indoor/outdoor access points and can be centrally managed with the Instant On mobile app onsite or remotely. These cloud-managed layer 2+ Ethernet switches consist of 8-, 24-, and 48-port Class 4 PoE (i.e. PoE+) and non-PoE Gigabit Ethernet models, with 1 G SFP slots on 8-port model and 1 G/10 G SFP+ slots on 24-/48 G models for fiber connectivity.
What is new supporting point:
Option to manage your switches through local web GUI.
HPE Networking Instant On mobile app and/or cloud-based web portal for easy network management onsite or remotely.
1 G/10 G SFP+ ports on 24-and 48-port models for fiber connectivity.
Non-PoE and Class 4 PoE (i.e. PoE+) 8-, 24- and 48-port models for deployment flexibility.
Seven advanced smart managed Layer 2+ Gigabit switches for high-performance connectivity.
What is new supporting point:
Option to manage your switches through local web GUI.
HPE Networking Instant On mobile app and/or cloud-based web portal for easy network management onsite or remotely.
1 G/10 G SFP+ ports on 24-and 48-port models for fiber connectivity.
Non-PoE and Class 4 PoE (i.e. PoE+) 8-, 24- and 48-port models for deployment flexibility.
Seven advanced smart managed Layer 2+ Gigabit switches for high-performance connectivity.
Key Features
- L2/L3/L4
- Switching capacity: 176 Gbit/s
- AC Power over Ethernet (PoE)
Specifications
| Dimensions Weight | |
|---|---|
| Width | 43 mm |
| Weight | 4590 g |
| Camera | |
| Built-in processor | Yes |
| Processor frequency | 800 |
| Computer system | |
| Internal memory | 512 |
| Data transmission | |
| Switching capacity | 176 |
| Features | |
| AC input voltage | 200 - 240 |
| Depth | 442 |
| Flash memory | 256 |
| Height | 322 |
| I/O ports | 48 RJ-45 autosensing 10/100/1000 Class 4 PoE ports (IEEE 802.3 Type 10B ASE-T, IEEE 802.3u Type 100 BASE-TX, IEEE 802.3ab Type 1000 BASE-T) Duplex: 10 BASE-T/100 BASE-TX: half or full; 1000 BASE-T: full only 4 SFP+ 1/10 GbE ports |
| Power over Ethernet (PoE) | Yes |
| Switch layer | L2/L3/L4 |
Extra Information
Brand:
HPE
MAC address table:
16000 entries
Switching capacity:
176
Throughput:
130.95 Mpps
Latency (1 Gbps):
2.2 µs
Latency (10 Gbps):
1.2 µs
Jumbo frames support:
Yes
Packet buffer memory:
1.5 MB
Latency (10-100 Mbps):
4.5 µs
Product colour:
White
Rack mounting:
Yes
Stackable:
No
Form factor:
1U
Memory type:
SDRAM / Flash
Networking standards:
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Auto MDI/MDI-X:
Yes
Switch type:
Managed
Switch layer:
L2/L3/L4
Quality of Service (QoS) support:
Yes
Web-based management:
Yes
Cloud-managed:
Yes
Internal memory:
512
10G support:
Yes
Port mirroring:
Yes
Flow control support:
Yes
Link aggregation:
Yes
Spanning tree protocol:
Yes
VLAN support:
Yes
Full duplex:
Yes
Rate limiting:
Yes
Auto-sensing:
Yes
Operating relative humidity (H-H):
15 - 95%
Operating temperature (T-T):
0 - 40 °C
Storage temperature (T-T):
-40 - 70 °C
Storage relative humidity (H-H):
15 - 95%
Operating altitude:
0 - 3048 m
Built-in processor:
Yes
Flash memory:
256
Basic switching RJ-45 Ethernet ports quantity:
48.0
Basic switching RJ-45 Ethernet ports type:
Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity:
4.0
Power consumption (max):
520 W
Power over Ethernet (PoE):
Yes
Power source:
AC
Power supply included:
Yes
AC input voltage:
200 - 240
AC input frequency:
50 - 60 Hz
Total Power over Ethernet (PoE) budget:
370 W
Processor model:
ARM Cortex-A9
Processor frequency:
800
Access Control List (ACL):
Yes
IGMP snooping:
Yes
DHCP features:
DHCP client
SSH/SSL support:
Yes
Width:
43 mm
Depth:
442
Height:
322
Weight:
4590 g
I/O ports:
48 RJ-45 autosensing 10/100/1000 Class 4 PoE ports (IEEE 802.3 Type 10B ASE-T, IEEE 802.3u Type 100 BASE-TX, IEEE 802.3ab Type 1000 BASE-T) Duplex: 10 BASE-T/100 BASE-TX: half or full; 1000 BASE-T: full only 4 SFP+ 1/10 GbE ports
Download | Product Brochure:
https://inishop.com/objects/mmo_101968559_1746731981_3492_1631035.pdf
Download | Quickspecs:
https://inishop.com/objects/mmo_101968559_1772345815_4184_2656645.pdf
Download | Data Sheet:
https://inishop.com/objects/mmo_101968559_1755264769_1836_1769092.pdf
ERP Category:
ARUBA
