Description

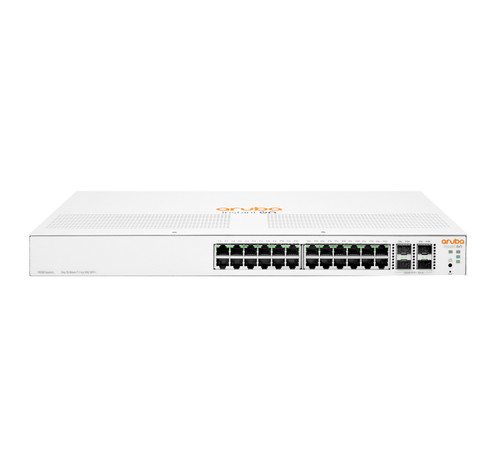

The HPE Networking Instant On Switch 1930 series is designed for small and growing businesses that require enhanced performance to support bandwidth-demanding applications. The 1930 switch series seamlessly integrates with existing Instant On indoor/outdoor access points and can be centrally managed with the Instant On mobile app onsite or remotely. These cloud-managed layer 2+ Ethernet switches consist of 8-, 24-, and 48-port Class 4 PoE (i.e. PoE+) and non-PoE Gigabit Ethernet models, with 1 G SFP slots on 8-port model and 1 G/10 G SFP+ slots on 24-/48 G models for fiber connectivity.
What is new supporting point:
Option to manage your switches through local web GUI.
HPE Networking Instant On mobile app and/or cloud-based web portal for easy network management onsite or remotely.
1 G/10 G SFP+ ports on 24-and 48-port models for fiber connectivity.
Non-PoE and Class 4 PoE (i.e. PoE+) 8-, 24- and 48-port models for deployment flexibility.
Seven advanced smart managed Layer 2+ Gigabit switches for high-performance connectivity.
What is new supporting point:
Option to manage your switches through local web GUI.
HPE Networking Instant On mobile app and/or cloud-based web portal for easy network management onsite or remotely.
1 G/10 G SFP+ ports on 24-and 48-port models for fiber connectivity.
Non-PoE and Class 4 PoE (i.e. PoE+) 8-, 24- and 48-port models for deployment flexibility.
Seven advanced smart managed Layer 2+ Gigabit switches for high-performance connectivity.
Key Features
- Managed L2/L3/L4 Web-based management
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 24
- 10G support
- MAC address table: 16000 entries Switching capacity: 128 Gbit/s
- Access Control List (ACL)
- 1U Rack mounting
- AC Power supply included Power over Ethernet (PoE)
Specifications
| Dimensions Weight | |
|---|---|
| Width | 43 mm |
| Weight | 3730 g |
| Battery | |
| Product colour | White |
| Call management | |
| Web-based management | Yes |
| Camera | |
| Built-in processor | Yes |
| Processor frequency | 800 |
| Computer system | |
| Internal memory | 512 |
| Processor model | ARM Cortex-A9 |
| Data transmission | |
| Latency (1 Gbps) | 2 |
| Latency (10 Gbps) | 1 |
| Latency (10-100 Mbps) | 4 |
| Switching capacity | 128 |
| Design | |
| Form factor | 1U |
| Operating relative humidity (H-H) | 15 - 95 |
| Rack mounting | Yes |
| Storage relative humidity (H-H) | 15 - 95 |
| Features | |
| AC input voltage | 200 - 240 |
| Depth | 442 |
| Flash memory | 256 |
| Height | 264 |
| I/O ports | 24 RJ-45 autosensing 10/100/1000 Class 4 PoE ports (IEEE 802.3 Type 10 BASE-T, IEEE 802.3u Type 100 BASE-TX, IEEE 802.3ab Type 1000 BASE-T) Duplex: 10 BASE-T/100 BASE-TX: half or full; 1000 BASE-T: full only 4 SFP+ 1/10 GbE ports |
| Power over Ethernet (PoE) | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2/L3/L4 |
| Switch type | Managed |
| VLAN support | Yes |
| Network | |
| 10G support | Yes |
| Networking standards | IEEE 802.1ab, IEEE 802.1D, IEEE 802.1Q, Ieee802 1qaz, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabitethernet 10 100 1000 |
| Security | |
| DHCP features | DHCP client |
| SSH/SSL support | Yes |
Extra Information
Brand:
HPE
MAC address table:
16000 entries
Switching capacity:
128
Throughput:
95.23 Mpps
Latency (1 Gbps):
2
Latency (10 Gbps):
1
Jumbo frames support:
Yes
Packet buffer memory:
1.5 MB
Latency (10-100 Mbps):
4
Jumbo frames:
9216.0
Product colour:
White
Rack mounting:
Yes
Stackable:
No
Form factor:
1U
Internal memory:
512
Memory type:
SDRAM / Flash
Auto MDI/MDI-X:
Yes
VLAN support:
Yes
Rate limiting:
Yes
Quality of Service (QoS) support:
Yes
Switch type:
Managed
Switch layer:
L2/L3/L4
Web-based management:
Yes
Cloud-managed:
Yes
ARP inspection:
Yes
System event log:
Yes
Networking standards:
IEEE 802.1ab, IEEE 802.1D, IEEE 802.1Q, Ieee802 1qaz, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support:
Yes
Port mirroring:
Yes
Flow control support:
Yes
Link aggregation:
Yes
Spanning tree protocol:
Yes
Full duplex:
Yes
Auto-sensing:
Yes
Operating temperature (T-T):
0 - 40 °C
Operating relative humidity (H-H):
15 - 95
Storage temperature (T-T):
-40 - 70 °C
Storage relative humidity (H-H):
15 - 95
Operating altitude:
0 - 3048 m
Built-in processor:
Yes
Flash memory:
256
Basic switching RJ-45 Ethernet ports quantity:
24
Basic switching RJ-45 Ethernet ports type:
Gigabitethernet 10 100 1000
SFP+ module slots quantity:
4.0
AC input voltage:
200 - 240
Power source:
AC
Power supply included:
Yes
AC input frequency:
50 - 60 Hz
Power consumption (max):
490 W
Power over Ethernet (PoE):
Yes
Total Power over Ethernet (PoE) budget:
370 W
Processor model:
ARM Cortex-A9
Processor frequency:
800
Access Control List (ACL):
Yes
IGMP snooping:
Yes
DHCP features:
DHCP client
SSH/SSL support:
Yes
Width:
43 mm
Depth:
442
Height:
264
Weight:
3730 g
I/O ports:
24 RJ-45 autosensing 10/100/1000 Class 4 PoE ports (IEEE 802.3 Type 10 BASE-T, IEEE 802.3u Type 100 BASE-TX, IEEE 802.3ab Type 1000 BASE-T) Duplex: 10 BASE-T/100 BASE-TX: half or full; 1000 BASE-T: full only 4 SFP+ 1/10 GbE ports
