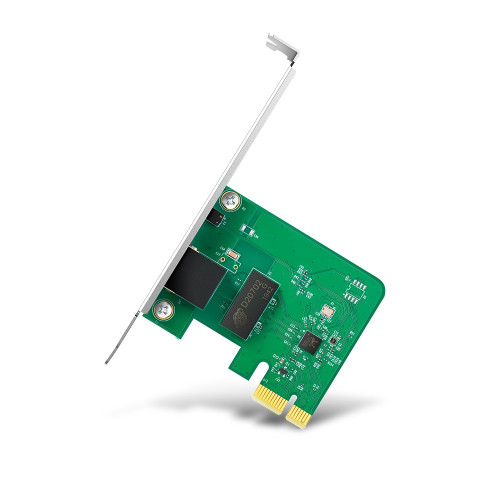

Description
Operating System
Supports operating systems include Windows 10/8.1/8/7/Vista/XP
Low-Profile Bracket
In addition to standard bracket, low-profile bracket is also provided for mini tower computer case
Wake On LAN
Remotely power on/off your computer with WOL, good for centralized management
Supports operating systems include Windows 10/8.1/8/7/Vista/XP
Low-Profile Bracket
In addition to standard bracket, low-profile bracket is also provided for mini tower computer case
Wake On LAN
Remotely power on/off your computer with WOL, good for centralized management
Extra Information
Brand:
TP-Link
Maximum data transfer rate:
2000 Mbit/s
LED indicators:
Status
Component for:
PC
Product colour:
Green, Grey
Certification:
FCC, BSMI, VCCI
Harmonized System (HS) code:
85176990.0
Quality of Service (QoS) support:
Yes
Full duplex:
Yes
Flow control support:
Yes
Ethernet interface type:
Gigabit Ethernet
Ethernet LAN data rates:
10,100,1000 Mbit/s
Auto MDIX IEEE:
Yes
Ethernet LAN:
Yes
Wake-on-LAN ready:
Yes
Auto-negotiation:
Yes
VLAN tagging:
Yes
Operating temperature (T-T):
0 - 40 °C
Storage temperature (T-T):
-40 - 70 °C
Operating relative humidity (H-H):
10 - 90%
Storage relative humidity (H-H):
5 - 90%
Interface:
Ethernet
Networking standards:
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Internal:
Yes
Maximum operating distance:
100 m
Quick installation guide:
Yes
Package width:
160 mm
Package depth:
135 mm
Package height:
30 mm
Package weight:
100 g
Mounting brackets included:
Yes
Resource CD:
Yes
Cabling technology:
10/100/1000BaseT(X)
Connectivity technology:
Wired
Ethernet LAN (RJ-45) ports:
1.0
Host interface:
PCI Express
Windows operating systems supported:
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Wi
Compliance certificates:
BSMI, CE, Federal Communications Commission (FCC), RoHS
Width:
78.5 mm
Height:
21.5 mm
Depth:
120.8 mm
Sustainability compliance:
Yes
