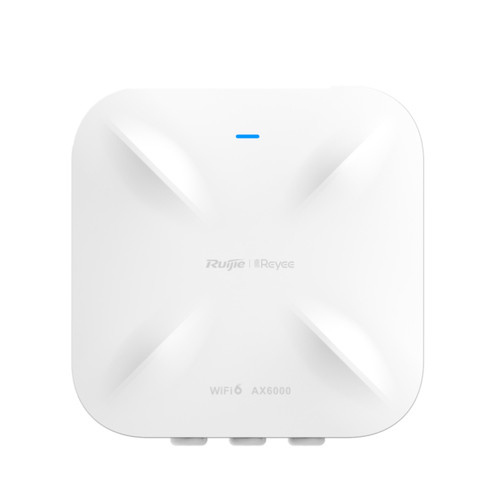

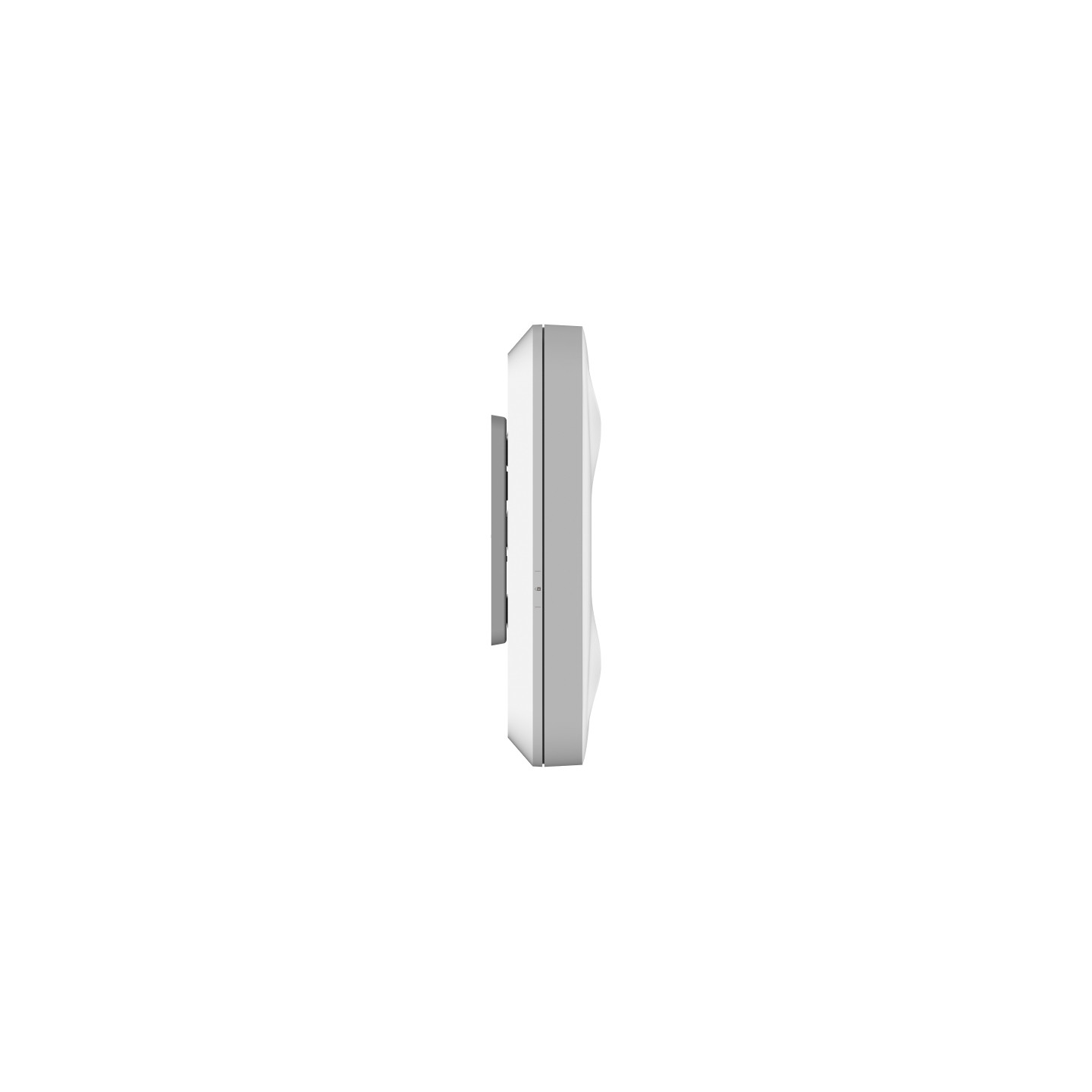

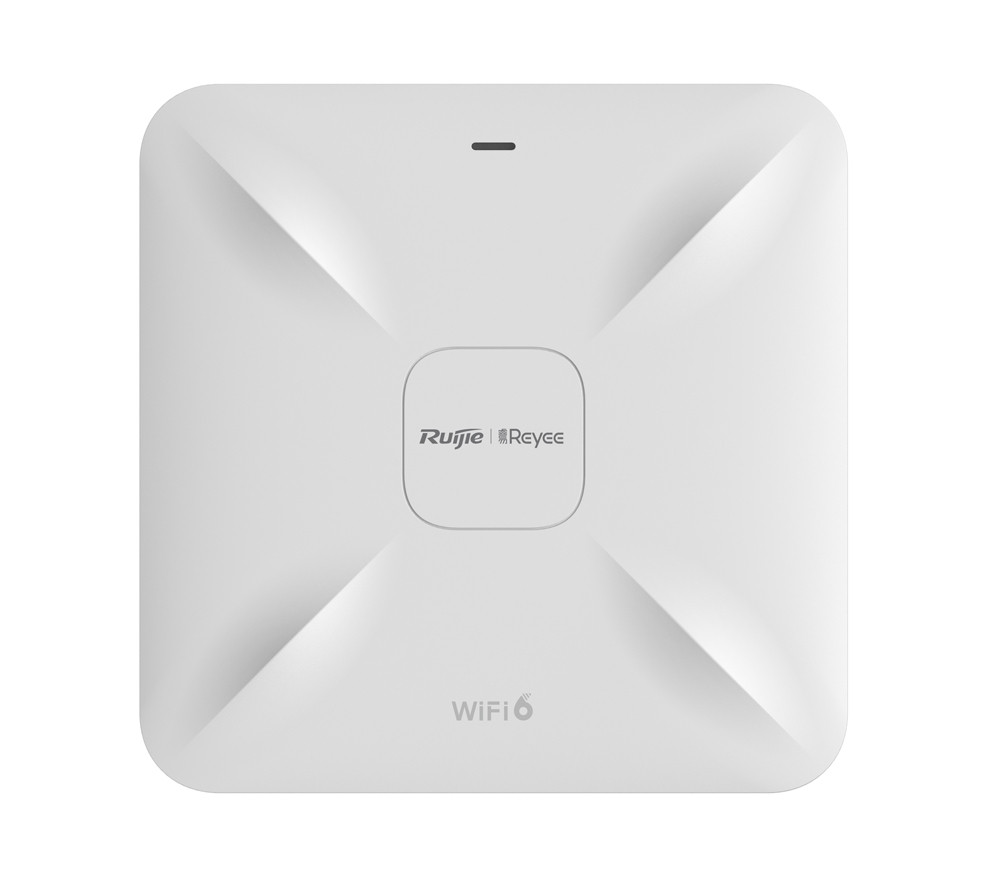

Reyee AX6000 Wi-Fi 6 dual-band Gigabit ceiling mount Indoor AP, 2� 2.5GB Port

No reviews yet Write a Review
SKU:
RG-RAP2260(H)

Description

  • Build ultra-fast and high-density Wi-Fi with 5.95Gbps throughput.

  • Client connections over 500, higher practical performance as well.

  • Boost Internet speed with 5Gbps uplink for the future.

  • Easily install extra AP with Reyee Mesh technology.

  • Support standalone captive portal, easy to enable Wi-Fi authentication.

Wireless Protocol

802.11ax (Wi-Fi 6), 5.95Gbps

Network Port

2 x 100M/1000/2500 Base-T

Antenna

Built-in Omni-directional

MIMO

4x4 @2.4 GHz, 4x4 @5 GHz

Recommended Clients

512/130

Operating Temperature

0°C~40°C

Dimension

230 mm x 230 mm x 49.5 mm

Weight

1.80 kg (excluding mounting kits)

Power Supply

802.3bt PoE++, 48V/1A DC

Power Consumption

<40 W

Certifications

CE, ROHS

Warranty

3 Years

Extra Information

Brand:
Reyee Networks
Antenna direction type:
Omni-directional
Antennas quantity:
8.0
Compliance certificates:
CE, RoHS
Product colour:
White
Reset button:
Yes
LED indicators:
Yes
2.4 GHz:
Yes
5 GHz:
Yes
Maximum data transfer rate (2.4 GHz):
1148 Mbit/s
Maximum data transfer rate (5 GHz):
4804 Mbit/s
VLAN support:
Yes
6 GHz:
No
Antenna type:
Internal
Networking standards:
IEEE 802.11a, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g
Ethernet LAN data rates:
100,1000,2500 Mbit/s
MIMO:
Yes
Operating temperature (T-T):
0 - 40 °C
Storage temperature (T-T):
-40 - 70 °C
Operating relative humidity (H-H):
5 - 95%
Storage relative humidity (H-H):
5 - 95%
Package width:
292 mm
Package depth:
277 mm
Package height:
81 mm
Package weight:
1.79 kg
Ethernet LAN (RJ-45) ports:
2.0
Power consumption (typical):
40 W
Power over Ethernet (PoE):
Yes
Output current:
1 A
DC voltage range:
48 V
DHCP client:
Yes
DHCP server:
Yes
Security algorithms:
WMM, WPA-PSK, WPA2-PSK
Width:
230 mm
Height:
49.5 mm
Weight:
1.8 kg
Depth:
230 mm
