Description

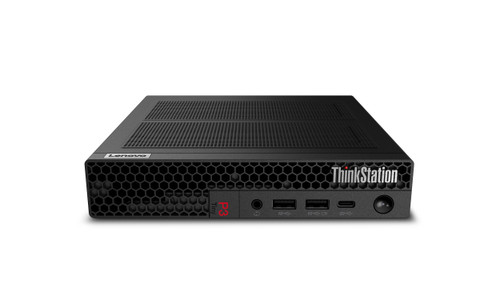

Lenovo ThinkStation P3 Tiny Gen 2. Processor family: Intel Core Ultra 7, Processor model: 265. Internal memory: 32 GB, Internal memory type: DDR5-SDRAM, Memory clock speed: 5600 MHz. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel® Graphics, Discrete graphics card model: NVIDIA RTX A400. Operating system installed: Windows 11 Pro, Operating system architecture: 64-bit. Power supply: 330 W. Chassis type: Mini PC. Product type: Workstation. Product colour: Black
Key Features
- Workstation Black 330 W
- Intel Core Ultra 7 265 Processor cores: 20
- 32 GB DDR5-SDRAM 5600 MHz 2 x 16 GB
- 1 TB SSD
- NVIDIA RTX A400 4 GB Intel® Graphics
- Ethernet LAN 10,100,1000 Mbit/s
- Windows 11 Pro 64-bit
Specifications
| Dimensions Weight | |
|---|---|
| Width | 179 mm |
| Height | 37 mm |
| Depth | 182.9 mm |
| Weight | 1400 g |
| Build Materials Chassis Design | |
| Chassis Type | Minipc |
| Audio | |
| Audio chip | Realtek ALC233VB |
| Audio system | High Definition Audio |
| Battery | |
| Product colour | Black |
| Camera | |
| Operating system installed | Windows 11 Pro |
| Computer case | |
| Power supply | 330 |
| Computer system | |
| Internal memory | 32 |
| Maximum internal memory | 128 |
| Processor cache | 30 |
| Processor cores | 20 |
| Processor family | Intel Core Ultra 7 |
| Processor generation | Intel Core Ultra (Series 2) |
| Processor manufacturer | Intel |
| Processor model | 265 |
| Design | |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Operating relative humidity (H-H) | 20 - 80 |
| Operating temperature (T-T) | 5 - 35 |
| Product type | Workstation |
| Storage relative humidity (H-H) | 10 - 90 |
| Storage temperature (T-T) | -40 - 60 |
| Display | |
| On-board graphics card model | Intel® Graphics |
| Docking station | |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Ethernet LAN features | |
| Ethernet LAN data rates | 10, 100, 1000 Mbit/s |
| Features | |
| Discrete graphics card memory | 4 |
| Discrete graphics card model | NVIDIA RTX A400 |
| DisplayPorts quantity | 1 |
| Internal memory type | DDR5-SDRAM |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Memory slots | 2x SO-DIMM |
| Motherboard chipset | Intel Q870 |
| Mouse included | Yes |
| Non-ECC | Yes |
| Number of SSDs installed | 1 |
| NVMe | Yes |
| On-board graphics card | Yes |
| On-board graphics card family | Intel® Graphics |
| Processor boost frequency | 5.3 |
| Processor cache type | Smart Cache |
| Processor threads | 20 |
| SSD capacity | 1000 |
| SSD form factor | M.2 |
| SSD interface | PCI Express 4.0 |
| Storage media | SSD |
| Total storage capacity | 1000 |
| Trusted Platform Module (TPM) | Yes |
| Wi-Fi | No |
| Graphics | |
| Discrete graphics card | Yes |
| Discrete graphics memory type | GDDR6 |
| On-board GPU manufacturer | Intel |
| Keyboard | |
| Keyboard included | Yes |
| Neural processor unit (NPU) | |
| AI software frameworks supported by NPU | DirectML, ONNX RT, OpenVINO, WebNN, Windows ML |
| GPU performance up to | 8 |
| Neural processor unit (NPU) | Intel AI Boost |
| NPU performance up to | 13 |
| Total processor performance up to | 33 |
| Performance | |
| Efficient cores | 12 |
| Performance cores | 8 |
| Ports & interfaces | |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 5 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Processor | |
| Efficient-core base frequency | 1.8 |
| Efficient-core Max Turbo Frequency | 4.6 |
| Performance-core base frequency | 2.4 |
| Performance-core Max Turbo Frequency | 5.2 |
| Storage | |
| Total SSDs capacity | 1000 |
Extra Information
Brand:
Lenovo
Width:
179 mm
Height:
37 mm
Weight:
1400 g
Chassis Type:
Minipc
Audio system:
High Definition Audio
Product colour:
Black
Power supply:
330
Internal memory:
32
Maximum internal memory:
128
Processor cache:
30
Processor cores:
20
Processor manufacturer:
Intel
Processor model:
265
Cable lock slot:
Yes
Cable lock slot type:
Kensington
Ethernet LAN:
Yes
Ethernet LAN (RJ-45) ports:
1
Operating relative humidity (H-H):
20 - 80
Product type:
Workstation
Storage relative humidity (H-H):
10 - 90
HDMI ports quantity:
1
Discrete graphics card memory:
4
Discrete graphics card model:
NVIDIA RTX A400
DisplayPorts quantity:
1
Internal memory type:
DDR5-SDRAM
Memory slots:
2x SO-DIMM
Motherboard chipset:
Intel Q870
Mouse included:
Yes
Non-ECC:
Yes
Number of SSDs installed:
1
NVMe:
Yes
On-board graphics card:
Yes
Processor threads:
20
SSD capacity:
1000
Total storage capacity:
1000
Trusted Platform Module (TPM):
Yes
Wi-Fi:
No
Discrete graphics card:
Yes
On-board GPU manufacturer:
Intel
Keyboard included:
Yes
GPU performance up to:
8
NPU performance up to:
13
Total processor performance up to:
33
Efficient cores:
12
Performance cores:
8
Total SSDs capacity:
1000
Download | User manual:
https://objects.icecat.biz/objects/mmo_132949925_1755161177_6367_3842659.pdf
Download | Product Brochure:
https://objects.icecat.biz/objects/mmo_132949925_1755161210_9784_3751252.pdf
Download | Compliance Info:
https://objects.icecat.biz/objects/mmo_132949925_1755161177_6559_3842659.pdf
Download | User Guide:
https://objects.icecat.biz/objects/mmo_132949925_1755161177_6139_3842659.pdf
Download | Setup Guide:
https://objects.icecat.biz/objects/mmo_132949925_1755161177_573_3842659.pdf
Download | EU Declaration of Conformity:
https://objects.icecat.biz/objects/mmo_132949925_1758113361_801_1788113.pdf
ERP Category:
LENOVO
Icecat Category:
PCs/Workstations
Depth:
182.9 mm
Audio chip:
Realtek ALC233VB
Operating system installed:
Windows 11 Pro
Processor family:
Intel Core Ultra 7
Processor generation:
Intel Core Ultra (Series 2)
Operating temperature (T-T):
5 - 35
Storage temperature (T-T):
-40 - 60
On-board graphics card model:
Intel® Graphics
HDMI version:
2.1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:
1
Ethernet LAN data rates:
10, 100, 1000 Mbit/s
M.2 SSD size:
2280 (22 x 80 mm)
On-board graphics card family:
Intel® Graphics
Processor boost frequency:
5.3
Processor cache type:
Smart Cache
SSD form factor:
M.2
SSD interface:
PCI Express 4.0
Storage media:
SSD
Discrete graphics memory type:
GDDR6
AI software frameworks supported by NPU:
DirectML, ONNX RT, OpenVINO, WebNN, Windows ML
Neural processor unit (NPU):
Intel AI Boost
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:
5
USB 3.2 Gen 2x2 Type-C ports quantity:
1
Efficient-core base frequency:
1.8
Efficient-core Max Turbo Frequency:
4.6
Performance-core base frequency:
2.4
Performance-core Max Turbo Frequency:
5.2
