Description

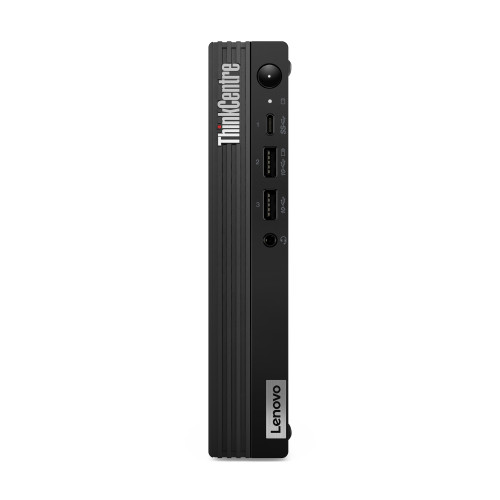

Lenovo ThinkCentre M70q Gen 5. Processor family: Intel® Core™ i5, Processor model: i5-14400T. Internal memory: 8 GB, Internal memory type: DDR5-SDRAM, Memory clock speed: 4800 MHz. Total storage capacity: 256 GB, Storage media: SSD. On-board graphics card model: Intel UHD Graphics 730. Operating system installed: Windows 11 Pro, Operating system architecture: 64-bit. Power supply: 90 W. Chassis type: Mini PC. Product type: Mini PC. Weight: 1.25 kg. Product colour: Black
Key Features
- Mini PC Black 90 W
- Intel® Core™ i5 i5-14400T Processor cores: 10
- 8 GB DDR5-SDRAM 4800 MHz 1 x 8 GB
- 256 GB SSD
- Intel UHD Graphics 730
- Ethernet LAN 100,1000 Mbit/s Wi-Fi 6E (802.11ax) Bluetooth 5.3
- Windows 11 Pro 64-bit
Specifications
| Dimensions Weight | |
|---|---|
| Width | 179 mm |
| Height | 36.5 mm |
| Depth | 182.9 mm |
| Weight | 1250 g |
| Build Materials Chassis Design | |
| Chassis Type | Minipc |
| Antenna | |
| Antenna type | 2x2 |
| Audio | |
| Audio chip | Realtek ALC233VB |
| Audio system | High Definition Audio |
| Built-in speaker(s) | Yes |
| Number of speakers | 1 |
| Battery | |
| Product colour | Black |
| Camera | |
| Operating system installed | Windows 11 Pro |
| Certificates | |
| Compliance certificates | RoHS |
| Computer case | |
| Power supply | 90 |
| USB 2.0 ports quantity | 1 |
| Computer system | |
| Internal memory | 8 |
| Maximum internal memory | 64 |
| Processor cache | 20 |
| Processor cores | 10 |
| Processor family | Intel® Core™ i5 |
| Processor generation | Intel® Core™ i5 (14th gen) |
| Processor manufacturer | Intel |
| Processor model | i5-14400T |
| VESA mounting | Yes |
| Data transmission | |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Design | |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Operating relative humidity (H-H) | 20 - 80 |
| Operating temperature (T-T) | 5 - 35 |
| Product type | Mini PC (<= 3L) |
| Storage relative humidity (H-H) | 10 - 90 |
| Storage temperature (T-T) | -40 - 60 |
| Display | |
| On-board graphics card model | Intel UHD Graphics 730 |
| Docking station | |
| Card reader integrated | No |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Ethernet LAN features | |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN data rates | 100, 1000 Mbit/s |
| Features | |
| Discrete graphics card model | Not available |
| DisplayPort version | 1.4a |
| DisplayPorts quantity | 1 |
| ECC | No |
| Internal memory type | DDR5-SDRAM |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Memory slots | 2x DIMM |
| Motherboard chipset | Intel Q670 |
| Mouse included | Yes |
| Non-ECC | Yes |
| Number of SSDs installed | 1 |
| Number of storage drives installed | 1 |
| NVMe | Yes |
| On-board graphics card | Yes |
| On-board graphics card family | Intel® UHD Graphics |
| Package depth | 128 |
| Package height | 250 |
| Package weight | 3200 |
| Package width | 490 |
| Processor boost frequency | 4.5 |
| Processor cache type | Smart Cache |
| Processor threads | 16 |
| SSD capacity | 256 |
| SSD form factor | M.2 |
| SSD interface | PCI Express 4.0 |
| Storage media | SSD |
| Total storage capacity | 256 |
| Trusted Platform Module (TPM) | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| Graphics | |
| Discrete graphics card | No |
| On-board GPU manufacturer | Intel |
| Keyboard | |
| Keyboard included | Yes |
| Network | |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Performance | |
| Efficient cores | 4 |
| Performance cores | 6 |
| Ports & interfaces | |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| Processor | |
| Efficient-core base frequency | 1.1 |
| Efficient-core Max Turbo Frequency | 3.2 |
| Performance-core base frequency | 1.5 |
| Performance-core Max Turbo Frequency | 4.5 |
| Storage | |
| Total SSDs capacity | 256 |
Extra Information
Brand:
Lenovo
Audio system:
High Definition Audio
Cable lock slot:
Yes
Cable lock slot type:
Kensington
Chassis Type:
Minipc
Volume:
1 L
Display included:
No
VESA mounting:
Yes
Product colour:
Black
Certification:
ENERGY STAR,TCO,EPEAT Silver,RoHS
Product type:
Mini PC (
SSD capacity:
256
NVMe:
Yes
On-board graphics card:
Yes
Discrete graphics card:
No
Discrete graphics card model:
Not available
On-board GPU manufacturer:
Intel
Memory channels:
Dual-channel
ECC:
No
Memory layout (slots x size):
1 x 8 GB
Memory slots:
2x DIMM
Non-ECC:
Yes
Mouse included:
Yes
Built-in speaker(s):
Yes
Ethernet LAN:
Yes
Wi-Fi:
Yes
WLAN controller manufacturer:
Intel
Operating relative humidity (H-H):
20 - 80
Storage relative humidity (H-H):
10 - 90
Operating altitude:
0 - 3048 m
Non-operating altitude:
0 - 12192 m
Maximum internal memory:
64
Number of speakers:
1
Keyboard included:
Yes
Keyboard connectivity:
Wired
Mouse connectivity:
Wired
Package width:
490
Package depth:
128
Package height:
250
Package weight:
3200
Internal memory:
8
Internal memory type:
DDR5-SDRAM
Memory clock speed:
4800 MHz
Card reader integrated:
No
Colour name:
Black
Motherboard chipset:
Intel Q670
Trusted Platform Module (TPM):
Yes
Ethernet LAN (RJ-45) ports:
1
HDMI ports quantity:
1
DisplayPorts quantity:
1
Combo headphone/mic port:
Yes
Bluetooth:
Yes
M.2 card slot (wireless):
1.0
M.2 card slot (storage):
2.0
Number of rear USB ports:
4.0
Number of front USB ports:
3.0
Number of front audio ports:
1.0
Power supply:
90
Power supply input voltage:
100 - 240 V
Power supply input frequency:
50/60 Hz
Processor cores:
10
Processor manufacturer:
Intel
Processor threads:
16
Processor cache:
20
Number of processors installed:
1.0
Processor base power:
35 W
Performance cores:
6
Efficient cores:
4
Maximum turbo power:
82 W
Trusted Platform Module (TPM) version:
2.0
Password protection:
Yes
Password protection type:
BIOS, HDD, Power on, Supervisor
Operating system architecture:
64-bit
Operating system language:
English
Total storage capacity:
256
Optical drive type:
No
Number of storage drives installed:
1
Total SSDs capacity:
256
Number of SSDs installed:
1
M.2 SSD size:
2280 (22 x 80 mm)
Sustainability certificates:
ENERGY STAR, EPEAT Silver, ErP, GREENGUARD, TCO
Width:
179 mm
Weight:
1250 g
Top Wi-Fi standard:
Wi-Fi 6E (802.11ax)
Antenna type:
2x2
Download | Product Brochure:
https://objects.icecat.biz/objects/mmo_123955579_1734558444_3721_2703941.pdf
Download | Product Brochure:
https://objects.icecat.biz/objects/mmo_123955579_1734481983_3247_4126715.pdf
ERP Category:
LENOVO
Icecat Category:
PCs/Workstations
Height:
36.5 mm
Depth:
182.9 mm
Audio chip:
Realtek ALC233VB
Operating system installed:
Windows 11 Pro
Compliance certificates:
RoHS
USB 2.0 ports quantity:
1
Processor family:
Intel® Core™ i5
Processor generation:
Intel® Core™ i5 (14th gen)
Processor model:
i5-14400T
Bluetooth version:
5.3
Operating temperature (T-T):
5 - 35
Storage temperature (T-T):
-40 - 60
On-board graphics card model:
Intel UHD Graphics 730
HDMI version:
2.1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity:
1
Cabling technology:
10/100/1000Base-T(X)
Ethernet LAN data rates:
100, 1000 Mbit/s
DisplayPort version:
1.4a
On-board graphics card family:
Intel® UHD Graphics
Processor boost frequency:
4.5
Processor cache type:
Smart Cache
SSD form factor:
M.2
SSD interface:
PCI Express 4.0
Storage media:
SSD
Wi-Fi standards:
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
WLAN controller model:
Intel Wi-Fi 6E AX211
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:
4
Efficient-core base frequency:
1.1
Efficient-core Max Turbo Frequency:
3.2
Performance-core base frequency:
1.5
Performance-core Max Turbo Frequency:
4.5
