Description

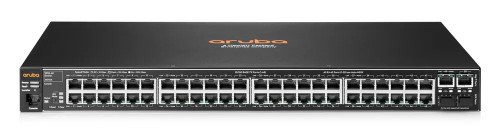

The Aruba 2530 Switch Series provides security, reliability, and ease of use for enterprise edge, branch office, and SMB deployments. Fully managed switches deliver Layer 2 capabilities with optional PoE+, enhanced access security, traffic prioritization, sFlow, IPv6 host support, and power savings with Energy Efficient Ethernet. The Aruba 2530 Switch Series is easy to use and deploy, and delivers consistent wired/wireless user experience with unified security and management tools such as Aruba ClearPass Policy Manager, Aruba AirWave and cloud-based Aruba Central.
Features
Cost-Effective, Reliable and Secure Access Layer Switches
- The Aruba 2530 Switch Series provides security, reliability, and ease of use for enterprise edge, branch office, and SMB deployments.
- Fully managed switches deliver full Layer 2 capabilities with optional PoE+, 10GbE uplinks, enhanced access security, traffic prioritization, sFlow, and IPv6 host support.
- Right size deployment with choice of 8-, 24-, and 48-port models available with Gigabit or Fast Ethernet ports, optional PoE+, and optional 10GbE uplinks.
- Power savings with fanless models, Energy Efficient Ethernet (IEEE 802.3az), and ability to disable LEDs and enable port low power mode.
- Delivers consistent wired/wireless user experience with unified management tools such as ClearPass Policy Manager and Airwave Network Management. Provides optimal configuration automatically when connected to Aruba access points for PoE priority, VLAN configuration, and rogue AP containment.
Security and Quality of Service (QoS)
- The Aruba 2530 Switch Series supports flexible authentication methods including Local MAC, 802.1X, and MAC and Web for greater policy-driven application security.
- Advanced denial of service (DOS) protection, such as DHCP Protection, Dynamic ARP protection, and Dynamic IP lockdown, enhance security. Flexible traffic controls include ACLs and QoS.
- Traffic prioritization with IEEE 802.1p allows real-time traffic classification with support for eight priority levels mapped to either two or four queues using weighted deficit round robin (WDRR) or strict priority (SP).
- Defend your IPv6 network with DHCPv6 Protection.
Simple Deployment and Management
- The Aruba 2530 Switch Series supports a choice of management interfaces with Web GUI, command-line interface (CLI), and SNMP with either console or micro USB ports.
- Quiet operation with fanless and variable speed fan models.
- Flexible deployment with wall, table, and rack mounting options.
- Zero touch provisioning (ZTP) provides quick and painless deployment at locations with few or no technical resources.
Single View of the Network
- The Aruba 2530 Switch Series supports ClearPass Policy Manager for unified and consistent policy between wired and wireless users and simplifies implementation and management of guest login, user onboarding, network access, security, QoS, and other network policies.
- Supports Airwave Network Management software to provide common platform for Zero-Touch Provisioning management, and monitoring for wired and wireless network devices.
- RMON and sFlow provide advanced monitoring and reporting capabilities for statistics, history, alarms, and events.
- Aruba Central cloud-based management platform offers simple, secure, and cost effective way to manage switches.
- Supports both cloud-based Central and on-premise AirWave with the same hardware ensuring change of management platform without ripping and replacing switching infrastructure.
Features
Cost-Effective, Reliable and Secure Access Layer Switches
- The Aruba 2530 Switch Series provides security, reliability, and ease of use for enterprise edge, branch office, and SMB deployments.
- Fully managed switches deliver full Layer 2 capabilities with optional PoE+, 10GbE uplinks, enhanced access security, traffic prioritization, sFlow, and IPv6 host support.
- Right size deployment with choice of 8-, 24-, and 48-port models available with Gigabit or Fast Ethernet ports, optional PoE+, and optional 10GbE uplinks.
- Power savings with fanless models, Energy Efficient Ethernet (IEEE 802.3az), and ability to disable LEDs and enable port low power mode.
- Delivers consistent wired/wireless user experience with unified management tools such as ClearPass Policy Manager and Airwave Network Management. Provides optimal configuration automatically when connected to Aruba access points for PoE priority, VLAN configuration, and rogue AP containment.
Security and Quality of Service (QoS)
- The Aruba 2530 Switch Series supports flexible authentication methods including Local MAC, 802.1X, and MAC and Web for greater policy-driven application security.
- Advanced denial of service (DOS) protection, such as DHCP Protection, Dynamic ARP protection, and Dynamic IP lockdown, enhance security. Flexible traffic controls include ACLs and QoS.
- Traffic prioritization with IEEE 802.1p allows real-time traffic classification with support for eight priority levels mapped to either two or four queues using weighted deficit round robin (WDRR) or strict priority (SP).
- Defend your IPv6 network with DHCPv6 Protection.
Simple Deployment and Management
- The Aruba 2530 Switch Series supports a choice of management interfaces with Web GUI, command-line interface (CLI), and SNMP with either console or micro USB ports.
- Quiet operation with fanless and variable speed fan models.
- Flexible deployment with wall, table, and rack mounting options.
- Zero touch provisioning (ZTP) provides quick and painless deployment at locations with few or no technical resources.
Single View of the Network
- The Aruba 2530 Switch Series supports ClearPass Policy Manager for unified and consistent policy between wired and wireless users and simplifies implementation and management of guest login, user onboarding, network access, security, QoS, and other network policies.
- Supports Airwave Network Management software to provide common platform for Zero-Touch Provisioning management, and monitoring for wired and wireless network devices.
- RMON and sFlow provide advanced monitoring and reporting capabilities for statistics, history, alarms, and events.
- Aruba Central cloud-based management platform offers simple, secure, and cost effective way to manage switches.
- Supports both cloud-based Central and on-premise AirWave with the same hardware ensuring change of management platform without ripping and replacing switching infrastructure.
Key Features
- Managed L2 Web-based management SNMPv1, SNMPv2c, SNMPv3
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 24
- MAC address table: 16000 entries Switching capacity: 56 Gbit/s
- Access Control List (ACL)
- 1U Rack mounting Stackable
- AC Power supply included Power over Ethernet (PoE)
Specifications
| Dimensions Weight | |
|---|---|
| Width | 443 mm |
| Weight | 3950 g |
| Call management | |
| Web-based management | Yes |
| Camera | |
| Built-in processor | Yes |
| Processor frequency | 800 |
| Computer system | |
| Internal memory | 256 |
| Processor model | Arm9 |
| Data transmission | |
| Latency (1 Gbps) | 2 |
| Latency (10-100 Mbps) | 7 |
| Switching capacity | 56 |
| Design | |
| Form factor | 1U |
| Rack mounting | Yes |
| Wall mountable | Yes |
| Ethernet LAN features | |
| Management protocols | SNMPv1, SNMPv2c, SNMPv3 |
| Features | |
| AC input voltage | 100 - 240 |
| Depth | 330 |
| Flash memory | 128 |
| Height | 44 |
| Power over Ethernet (PoE) | Yes |
| Quality of Service (QoS) support | Yes |
| SFP+ module slots quantity | 4 |
| Switch layer | L2 |
| Switch type | Managed |
| VLAN support | Yes |
| Network | |
| 10G support | No |
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Performance | |
| Virtual stacking (units) | 16 |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabitethernet 10 100 1000 |
| Security | |
| SSH/SSL support | Yes |
Extra Information
Brand:
HPE
MAC address table:
16000 entries
Switching capacity:
56
Throughput:
41.6 Mpps
Latency (1 Gbps):
2
Jumbo frames support:
Yes
Packet buffer memory:
1.5 MB
Latency (10-100 Mbps):
7
Rack mounting:
Yes
Stackable:
Yes
Form factor:
1U
Wall mountable:
Yes
Internal memory:
256
Memory type:
DDR3-SDRAM
Auto MDI/MDI-X:
Yes
VLAN support:
Yes
Rate limiting:
Yes
Quality of Service (QoS) support:
Yes
Switch type:
Managed
Switch layer:
L2
Web-based management:
Yes
MIB support:
Y
Multicast support:
Yes
Networking standards:
IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G support:
No
Port mirroring:
Yes
Flow control support:
Yes
Link aggregation:
Yes
Spanning tree protocol:
Yes
Full duplex:
Yes
Auto-sensing:
Yes
Number of VLANs:
512.0
Half duplex:
Yes
Heat dissipation:
135 BTU/h
Built-in processor:
Yes
Flash memory:
128
Virtual stacking (units):
16
Basic switching RJ-45 Ethernet ports quantity:
24
Basic switching RJ-45 Ethernet ports type:
Gigabitethernet 10 100 1000
SFP module slots quantity:
4.0
AC input voltage:
100 - 240
Power source:
AC
Power supply included:
Yes
AC input frequency:
50 - 60 Hz
Power consumption (max):
247 W
Power over Ethernet (PoE):
Yes
Total Power over Ethernet (PoE) budget:
195 W
Processor model:
Arm9
Processor frequency:
800
Management protocols:
SNMPv1, SNMPv2c, SNMPv3
Access Control List (ACL):
Yes
Authentication:
MAC-based authentication, Web-based authentication
Authentication type:
RADIUS, TACACS+
SSH/SSL support:
Yes
Width:
443 mm
Depth:
330
Height:
44
Weight:
3950 g
SFP+ module slots quantity:
4
Download | Product Brochure:
https://inishop.com/objects/mmo_114535406_1694091546_2805_20452.pdf
