Description

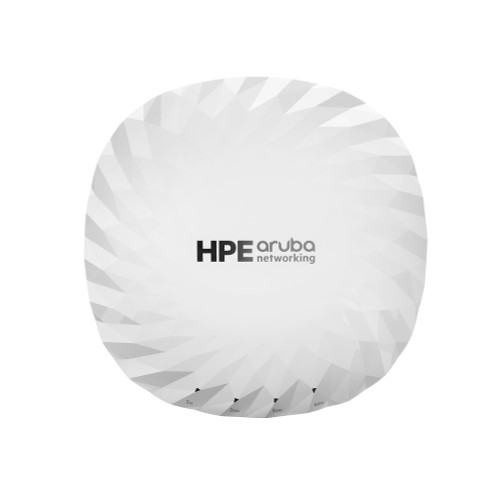

The HPE Aruba Networking 530 Series Campus Access Points provide Wi-Fi 6 connectivity for high-density deployments such as larger office spaces, training and meeting facilities, and hospitals. Providing up to 2.97 Gbps combined aggregate data rate, this series is built on Wi-Fi 6 standards (IEEE 802.11ax) and includes features such as OFDMA, bidirectional MU-MIMO, and target wait time (TWT) for better multi-user performance and improved efficiency. The 530 series can be deployed using zero touch provisioning (ZTP) without on‑site technical expertise, for ease of implementation in branch offices and for remote work. HPE Aruba Networking Central provides a single pane of glass for overseeing wired and wireless LANs, WANs, and VPNs. AI‑powered analytics, end‑to‑end orchestration and automation, and advanced security features are built natively into the solution. The 530 series includes a limited lifetime warranty.
What is new supporting point:
Wi-Fi 6 access points (APs) provide up to 2.97 Gbps combined aggregate data rate
Dual radio AP supporting 5 GHz and 2.4 GHz bands (4x4 MIMO)
Protects network security with stronger encryption and authentication, secure credentials/keys storage, and user and IoT access policy enforcement firewalls (PEFs)
IoT-ready with support for Bluetooth 5 and Zigbee and two 5 Gbps ports for fast wired connectivity
Deploy models with internal antennas or connectorized models that support external antennas to meet the range of environments
What is new supporting point:
Wi-Fi 6 access points (APs) provide up to 2.97 Gbps combined aggregate data rate
Dual radio AP supporting 5 GHz and 2.4 GHz bands (4x4 MIMO)
Protects network security with stronger encryption and authentication, secure credentials/keys storage, and user and IoT access policy enforcement firewalls (PEFs)
IoT-ready with support for Bluetooth 5 and Zigbee and two 5 Gbps ports for fast wired connectivity
Deploy models with internal antennas or connectorized models that support external antennas to meet the range of environments
Key Features
- 2.4 GHz 1148 Mbit/s
- 5 GHz 2402 Mbit/s
- Maximum data transfer rate: 3550 Mbit/s
- IEEE 802.11ax, IEEE 802.11mc
- WMM, WPA, WPA2
- Power over Ethernet (PoE)
- Antennas quantity: 4 Internal Integrated antenna
Specifications
| Dimensions Weight | |
|---|---|
| Width | 240 mm |
| Height | 57 mm |
| Depth | 240 mm |
| Weight | 1000 g |
| Antenna | |
| Antenna direction type | Omni-directional |
| Antenna features | Integrated antenna |
| Antenna type | Internal |
| Battery | |
| Product colour | White |
| Certificates | |
| Compliance certificates | Electromagneticcompatibility Emc, Federalcommunicationscommission Fcc, ISED, Lowvoltagedirective Lvd |
| Data transmission | |
| Maximum data transfer rate | 3550 |
| Design | |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Ethernet LAN (RJ-45) ports | 2 |
| Operating relative humidity (H-H) | 5 - 93 |
| Recommended usage | Indoor |
| Storage relative humidity (H-H) | 5 - 93 |
| Ethernet LAN features | |
| Ethernet LAN data rates | 5000 |
| Features | |
| 5 GHz | Yes |
| Compatible operating systems | HPE Aruba Networking Wireless Operating System 8.5.0.0* HPE Aruba Networking Instant OS 8.5.0.0* HPE Aruba Networking Wireless Operating System 10.0.0.0 or later. Note: *With some restrictions. For unrestricted operation, use 8.6.0.0 or later. |
| Depth | 240 |
| Frequency band | 20/40 (2.4 GHz), 20/40/80/(80+80) (5 GHz), and maximum peak data rate 2.9 Gbps |
| Harmonized System (HS) code | 85176990 |
| Height | 57 |
| I/O ports | E0, E1: Ethernet port (RJ-45) Serial console interface (proprietary, micro-B USB physical jack) USB 2.0 host interface (Type A connector) Kensington security slot |
| Maximum data transfer rate (5 GHz) | 2402 |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Modulation | 1024-QAM, 16-QAM, 256-QAM, 64-QAM, BPSK, CCK, QPSK |
| Power over Ethernet (PoE) | Yes |
| Security algorithms | WMM, WPA, WPA2 |
| USB connector type | USB Type-A |
| Network | |
| Networking standards | IEEE 802.11ax, IEEE 802.11mc |
Extra Information
Brand:
HPE
Antenna direction type:
Omni-directional
Antenna features:
Integrated antenna
Antennas quantity:
4.0
Antenna gain level (max):
5.4 dBi
Compliance certificates:
Electromagneticcompatibility Emc, Federalcommunicationscommission Fcc, ISED, Lowvoltagedirective Lvd
Product colour:
White
Placement:
Ceiling, Wall
Cable lock slot:
Yes
Cable lock slot type:
Kensington
2.4 GHz:
Yes
5 GHz:
Yes
Maximum data transfer rate:
3550
Maximum data transfer rate (2.4 GHz):
1148 Mbit/s
Maximum data transfer rate (5 GHz):
2402
Ethernet LAN data rates:
5000
Networking standards:
IEEE 802.11ax, IEEE 802.11mc
Auto MDI/MDI-X:
Yes
MIMO:
Yes
MIMO type:
Multi User MIMO
Spread spectrum method:
DSSS, OFDM
Modulation:
1024-QAM, 16-QAM, 256-QAM, 64-QAM, BPSK, CCK, QPSK
Harmonized System (HS) code:
85176990
Operating relative humidity (H-H):
5 - 93
Operating temperature (T-T):
0 - 50 °C
Storage temperature (T-T):
-40 - 70 °C
Storage relative humidity (H-H):
5 - 93
Ethernet LAN (RJ-45) ports:
2
USB 2.0 ports quantity:
1.0
USB connector type:
USB Type-A
Power consumption (max):
23.3 W
Power over Ethernet (PoE):
Yes
Security algorithms:
WMM, WPA, WPA2
Width:
240 mm
Depth:
240 mm
Height:
57 mm
Weight:
1000 g
Antenna type:
Internal
Recommended usage:
Indoor
Compatible operating systems:
HPE Aruba Networking Wireless Operating System 8.5.0.0* HPE Aruba Networking Instant OS 8.5.0.0* HPE Aruba Networking Wireless Operating System 10.0.0.0 or later. Note: *With some restrictions. For unrestricted operation, use 8.6.0.0 or later.
Depth:
240
Frequency band:
20/40 (2.4 GHz), 20/40/80/(80+80) (5 GHz), and maximum peak data rate 2.9 Gbps
Height:
57
I/O ports:
E0, E1: Ethernet port (RJ-45) Serial console interface (proprietary, micro-B USB physical jack) USB 2.0 host interface (Type A connector) Kensington security slot
